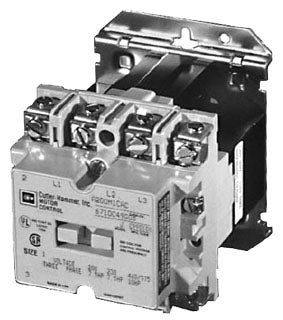

Eaton A201K6CX | A200 Series Contactor | NEMA Size 6 | 3-Pole | 540A | 600V | Open Type | 480VAC Coil | New
The Eaton A201K6CX is a high-capacity, industrial-grade contactor from the A200 Series, designed for dependable performance in heavy-duty motor control and power switching applications. Rated for 540 Amps, this 3-pole contactor is built to handle large horsepower motors across a wide voltage range, making it ideal for use in commercial, industrial, and utility-scale power systems.
As a NEMA Size 6 device, the A201K6CX supports motor loads up to 150 HP at 208V, 200 HP at 240V, 400 HP at 480V, and 400 HP at 600V. It features an open-style frame suitable for integration into custom or enclosed control panels and utilizes a 480VAC, 60Hz control coil for reliable energization in standard North American power systems.
This model is designed for durability and high electrical life, meeting or exceeding NEMA and UL standards for performance. Eaton’s A200 Series contactors are known for their rugged construction, replaceable contacts, and modular design that supports a wide range of accessories and overload relays.
🔧 Key Features & Specifications:
- Manufacturer: Eaton
- Series: A200
- Model Number: A201K6CX
- Contactor Type: Full-voltage, non-reversing
- NEMA Size: 6
- Number of Poles: 3
- Continuous Current Rating: 540 Amps
- Voltage Rating: Up to 600V AC
-
Horsepower Ratings:
- 150 HP @ 208V
- 200 HP @ 240V
- 400 HP @ 480V
- 400 HP @ 600V
- Coil Voltage: 480VAC, 60Hz
- Frame Style: Open type
- Mounting: Panel mounting
- Auxiliary Contacts: Available separately or as accessories
- Standards Compliance: UL Listed, CSA Certified, NEMA ICS
- Typical Applications: Large motors, pumps, compressors, chillers, material handling, HVAC systems, utility and process automation
- Condition: New, unused
With its high current capacity, broad voltage support, and proven reliability, the Eaton A201K6CX is an excellent choice for demanding motor control applications in large-scale industrial environments.
