Eaton FD30-100-D-L1 | Fire Pump Controller

Eaton FD30-100-D-L1 | Fire Pump Controller | Across-the-Line Start | 100 HP | 480V | 60 Hz | New

The Eaton FD30-100-D-L1 is a high-performance fire pump controller designed for full-voltage, across-the-line starting of electric motor-driven fire pumps in critical fire protection systems. Rated for 100 horsepower at 480V, 60 Hz, this controller meets the rigorous standards required for life safety equipment and is ideally suited for commercial, industrial, and institutional fire pump installations.

Engineered for reliability and compliance, the FD30-100-D-L1 conforms to NFPA 20, UL 218, and FM approvals, making it a trusted choice for mission-critical fire protection infrastructure. Its across-the-line starting method ensures full motor voltage is applied during startup, delivering maximum torque and immediate water delivery when seconds count.

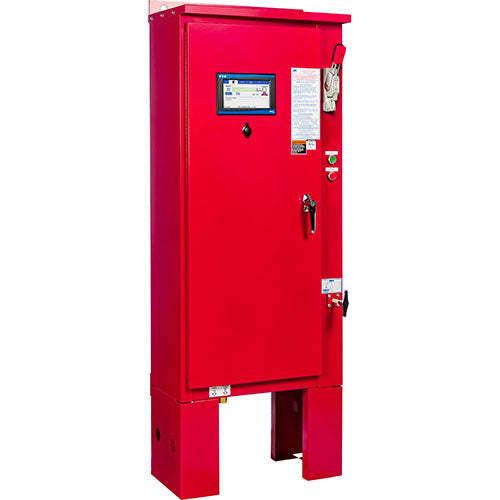

The controller features a rugged, NEMA-rated enclosure, integral circuit breaker protection, and a user-friendly front interface with status indicators, control switches, and access to operational parameters. It is factory-assembled, wired, and tested to ensure quick installation and reliable operation in emergency scenarios.

🔧 Key Features & Specifications:

• Manufacturer: Eaton
• Model Number: FD30-100-D-L1
• Controller Type: Fire Pump Controller
• Starting Method: Across-the-Line (Direct-on-line)
• Motor Rating: 100 HP
• Voltage Rating: 480V AC
• Frequency: 60 Hz
• Enclosure: NEMA Type 2 (standard), other options available
• Short-Circuit Protection: Circuit breaker integral to design
• Compliance & Listings:
  • NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection)
  • UL 218 Listed (Fire Pump Controllers)
  • FM Approved
• Interface Components:
  • Manual/off/auto selector switch
  • Pilot lights for status indication
  • Alarm and event history
  • Pressure transducer and/or start signals
• Construction: Factory-assembled, tested, and pre-wired
• Application: Commercial, industrial, healthcare, and municipal fire protection systems
• Condition: New, unused

The Eaton FD30-100-D-L1 provides dependable fire pump operation under emergency conditions, meeting the highest standards for performance, safety, and durability.
