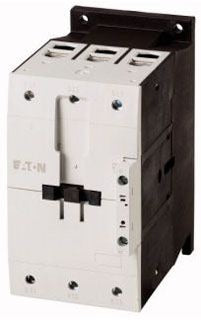

Eaton XTCE150G00A (MSAA239587) | 3-Pole IEC Contactor | MSAA239587 / XTCE150G00A

Eaton XTCE150G00A (MSAA239587) | 3-Pole IEC Contactor | 150A | 110/120VAC Coil | Frame G | New

The Eaton XTCE150G00A (catalog ref: MSAA239587) is a heavy-duty IEC-rated contactor designed to deliver reliable motor control and high-current switching performance in industrial environments. As part of Eaton’s XT IEC contactor series, this compact yet powerful 3-pole contactor is rated for 150 Amps AC-3 and features a coil voltage of 110V at 50 Hz / 120V at 60 Hz, making it ideal for North American and global applications alike.

This Frame G contactor has a 90 mm frame width and supports screw terminal connections for secure wiring. With its compact design and high power density, it is engineered for full-voltage, non-reversing (FVNR) motor control, particularly in applications such as compressors, fans, conveyors, and machinery. The contactor supports a wide range of motor horsepower ratings across multiple voltages, including up to 125 HP at 460V or 575V in three-phase systems.

The XTCE150G00A is also compatible with Eaton’s line of electronic and bimetal overload relays, offering flexibility and enhanced motor protection. Designed for energy efficiency, it features low coil power consumption and is compliant with IEC 60947-4-1, UL, and CSA standards.

🔧 Key Features & Specifications:

• Manufacturer: Eaton (Cutler-Hammer)
• Model Number: XTCE150G00A
• Catalog Reference: MSAA239587
• Series: XT IEC Contactor Series
• Frame Size: G (90 mm width)
• Contact Configuration: 3-Pole, 0NO / 0NC
• Continuous Current Rating: 150 Amps (AC-3)
• Coil Voltage: 110V AC (50 Hz) / 120V AC (60 Hz)
• Frequency: 50/60 Hz
• Horsepower Ratings (3-Phase):
  • 10 HP @ 115V
  • 25 HP @ 200V
  • 30/40 HP @ 230V
  • 60 HP @ 460V
  • 125 HP @ 575V
• Terminal Type: Screw terminals
• Mounting: Panel or DIN rail compatible (adapter may be required)
• Control Type: Full Voltage Non-Reversing (FVNR)
• Standards Compliance: IEC 60947-4-1, UL Listed, CSA Certified, CE marked
• Auxiliary Contact Support: Compatible with add-on blocks (sold separately)
• Condition: New, unused
• Typical Applications: Pumps, HVAC systems, industrial machinery, motor starters, material handling, compressors

The XTCE150G00A provides a high-performance and space-efficient solution for motor control applications. Its versatile design, high current capacity, and global compliance make it a preferred choice for OEMs, panel builders, and industrial automation professionals.
