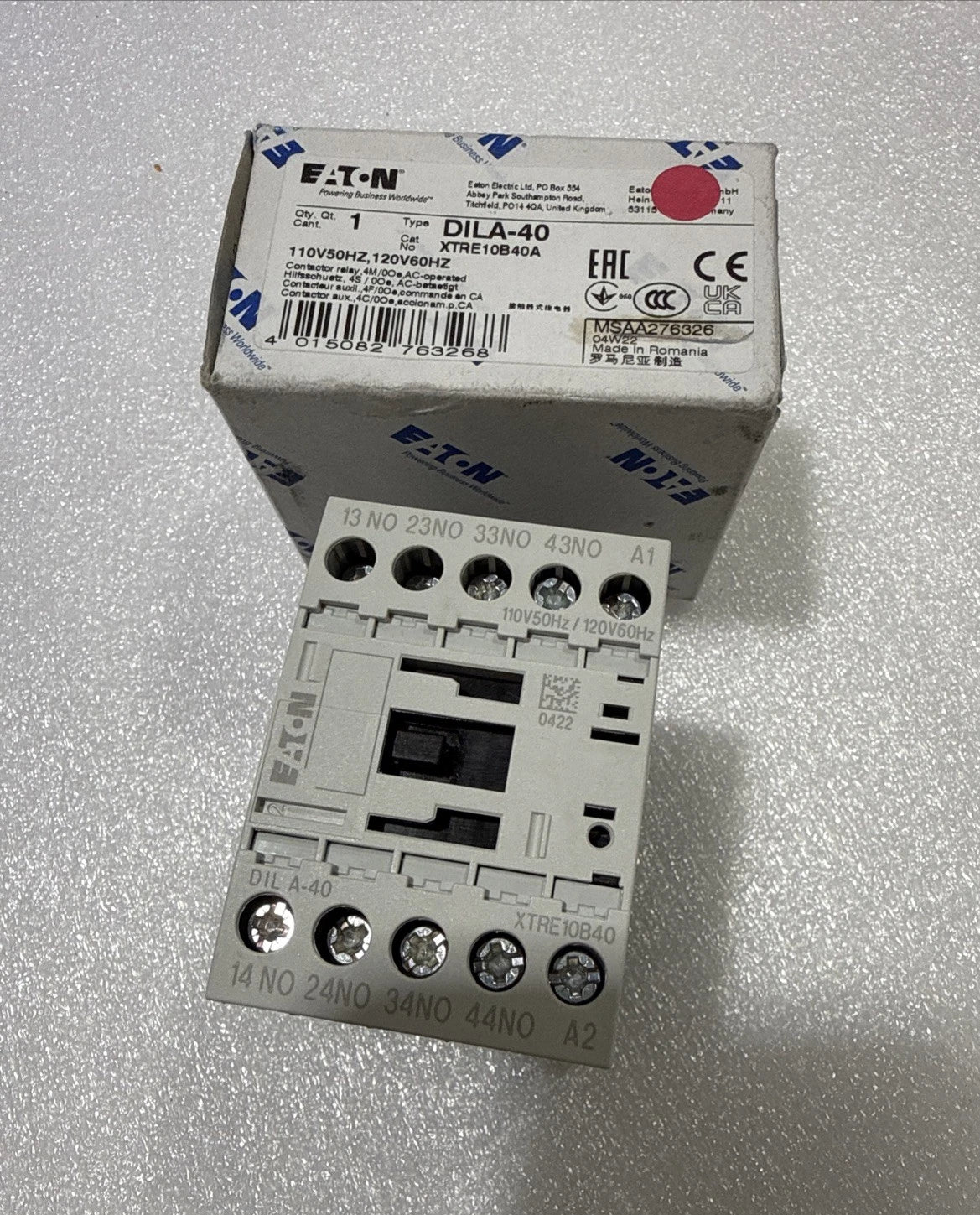

MSAA276326 / XTRE10B40A / DILA-40

MSAA276326 / XTRE10B40A / DILA-40 EATON CUTLER HAMMER FIRE PUMP CONTROLLER RELAY 1XR ELECTRCIC TRANSFER SWITCH COMPONENT NEW

XT IEC Control Relay, Screw terminals, 45 mm - standard Frame size, 4NO contact configuration, 110V 50 Hz, 120V 60 Hz coil, 10A conventional thermal rating, 6A at 220/230/240V; 4A at 380/400/415V rated operational voltage Three basic versions of the XTMR contactor relay are available: 4NO contacts; 3NO contacts and 1NC contact; and 2NO contacts and 2NC contacts. The devices can be expanded to up to eight contacts and come with two pole and four pole top-mounting auxiliary contacts. The relays are ideally suited for use as coupling or interface contactors, especially if used to control large contactors directly from a PLC.
