Eaton XTCE040D00A / MSAA277763 | 3-Pole IEC Contactor

Eaton XTCE040D00A / MSAA277763 | 3-Pole IEC Contactor | 40A | 120VAC Coil | D-Frame | New

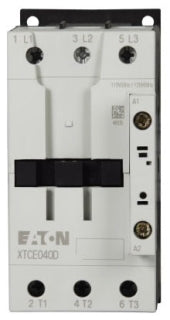

The Eaton XTCE040D00A (catalog ref: MSAA277763) is a high-quality 3-pole IEC contactor engineered for reliable and efficient motor control in commercial, industrial, and HVAC applications. As part of Eaton's advanced XT series, this D-frame contactor is rated for 40 Amps (AC-3) and is designed to control motors and resistive loads up to approximately 20 HP at 460V in three-phase systems.

Featuring a 120VAC 60Hz coil, the XTCE040D00A supports easy integration with standard North American control systems. The contactor is equipped with screw-type terminals for secure and straightforward wiring and includes a modular design that allows for the addition of auxiliary contacts, overload relays, and suppressor modules.

With a compact form factor and reliable performance characteristics, this unit is a preferred solution for motor starters, power control panels, lighting systems, and general-purpose switching. Compliant with international standards including IEC 60947, UL, and CSA, it ensures safe operation across a wide range of environments.

🔧 Key Features & Specifications:

• Manufacturer: Eaton (Cutler-Hammer)
• Model Number: XTCE040D00A
• Catalog Reference: MSAA277763
• Contactor Series: XT IEC Series
• Frame Size: D-Frame
• Poles: 3
• AC-3 Rated Current: 40 Amps
• Horsepower Ratings (3-Phase):
  • 7.5 HP @ 230V
  • 20 HP @ 460V / 575V
• Coil Voltage: 120V AC 60Hz
• Auxiliary Contacts: None included (supports add-on modules)
• Terminal Type: Screw terminals
• Mounting: DIN rail or panel mount
• Certifications: IEC 60947-4-1, UL Listed, CSA Certified, CE marked
• Operating Temperature Range: –25°C to +60°C
• Dimensions: Compact design for reduced panel space
• Condition: Brand New, Unused
• Typical Applications: Motor starters, HVAC systems, compressors, lighting banks, control panels, pumps, and fans

Compact, durable, and compatible with Eaton’s full line of motor control accessories, the XTCE040D00A is an ideal solution for OEMs, panel builders, and field service contractors seeking efficient and scalable motor switching capabilities.
