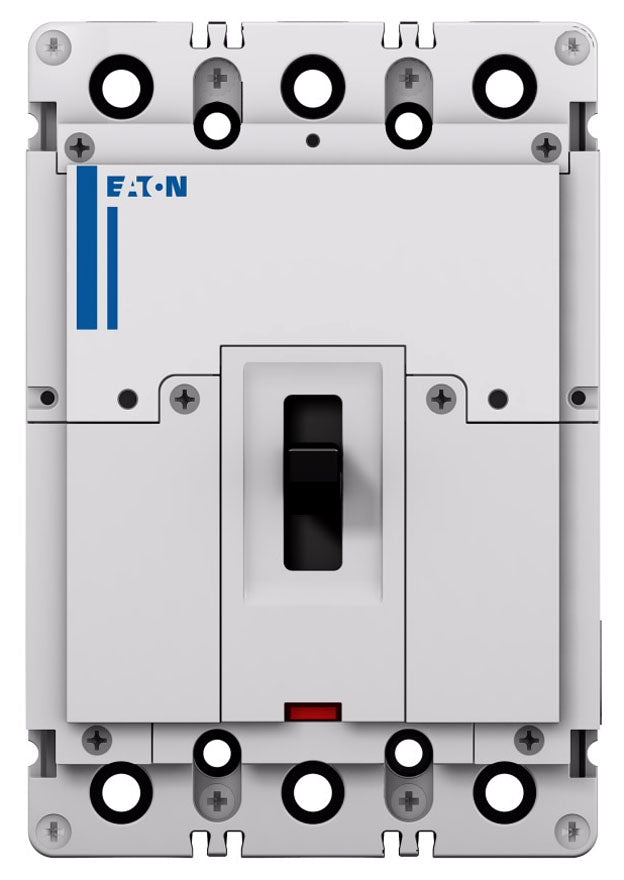

PDG23P0200TFFN Eaton 3-Pole 200A 480V Molded Case Circuit Breaker

PDG23P0200TFFN Eaton 3-Pole 200A 480V Molded Case Circuit Breaker – Heavy-Duty Overcurrent Protection for Industrial and Commercial Systems

The Eaton PDG23P0200TFFN is a premium-grade molded case circuit breaker (MCCB) designed to deliver robust protection for electrical distribution systems in industrial, commercial, and institutional settings. With a current rating of 200 amps and a voltage rating of 480V AC, this 3-pole circuit breaker is ideal for use in panelboards, switchboards, and motor control centers where high-capacity protection and reliability are required.

Engineered with Eaton’s advanced Series G (PDG2 frame) technology, this breaker integrates a thermal-magnetic trip unit that provides both long-time and instantaneous trip functions. It offers fast, dependable protection against overloads and short circuits, ensuring system safety and minimizing downtime. Its bolt-on mounting configuration and front-connected terminals allow for simple, secure installation.

The PDG23P0200TFFN meets rigorous industry standards and is UL 489 Listed and CSA Certified. It is built to handle harsh environments and demanding electrical loads, making it a trusted choice for engineers and facility managers who require dependable circuit protection in mission-critical applications.

Key Features:

• Model Number: PDG23P0200TFFN
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Type: PDG2 Series G
• Poles: 3
• Rated Current: 200 Amps
• Voltage Rating: 480V AC
• Trip Type: Thermal-Magnetic
• Interrupting Rating: High fault current interrupt capacity
• Mounting Configuration: Bolt-On
• Terminal Type: Front-connected
• Certifications: UL 489 Listed, CSA Certified
• Applications: Industrial, commercial, and infrastructure power distribution
• Compliance: Meets NEC and IEC standards
• Condition: Brand New, Factory Sealed
• Additional Info: Compact footprint, suitable for retrofit and new installations
