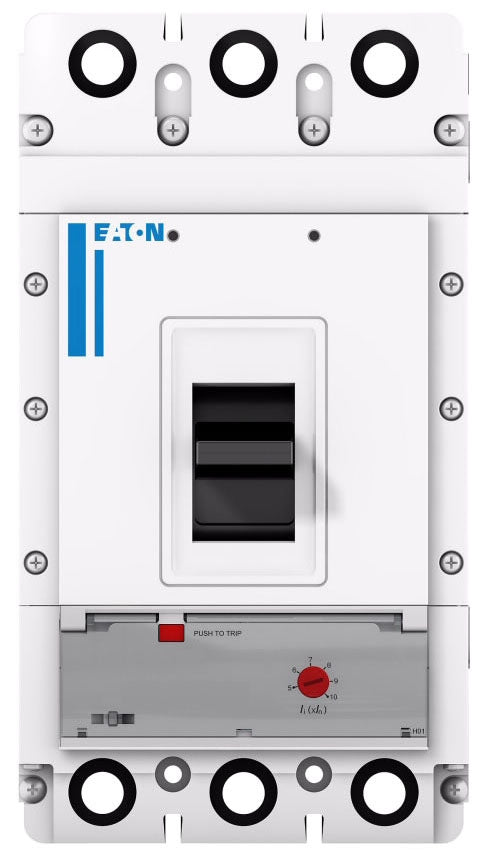

Eaton PDG33P0250TFAN | 3-Pole Molded Case Circuit Breaker

Eaton PDG33P0250TFAN | 3-Pole Molded Case Circuit Breaker | 250A | 480V | 100kA Interrupt Rating | New

The Eaton PDG33P0250TFAN is a rugged, industrial-grade molded case circuit breaker (MCCB) from Eaton’s G-Frame series, engineered to deliver exceptional protection for electrical distribution systems in commercial and industrial applications. Rated for 250 Amps and 480V AC, this 3-pole circuit breaker is designed to safeguard circuits from overloads and short circuits while providing high performance, reliability, and code compliance.

With an interrupting capacity of 100kA at 480V AC, the PDG33P0250TFAN is ideal for installations where high fault currents may be present, including main distribution panels, motor control centers, and service entrance equipment. The breaker is UL 489 Listed and suitable for use in applications requiring strict adherence to safety and performance standards.

Featuring a thermal-magnetic trip unit, the PDG33P0250TFAN provides accurate, reliable trip response under both short circuit and overload conditions. Its compact, bolt-on design makes it easy to install in standard panel configurations, and its modular frame allows for accessories such as shunt trips, auxiliary contacts, and zone-selective interlocking.

🔧 Key Features & Specifications:

• Manufacturer: Eaton
• Model Number: PDG33P0250TFAN
• Frame Type: G-Frame (PDG3 Series)
• Poles: 3
• Rated Current: 250 Amps
• Voltage Rating: 480V AC
• Interrupting Rating: 100,000 Amps (100kA) at 480V AC
• Trip Unit Type: Thermal-Magnetic (Fixed)
• Mounting Type: Bolt-on
• Frequency: 50/60 Hz
• Terminal Type: Line and load lugs (standard)
• Compliance: UL 489 Listed, CSA Certified, IEC 60947-2
• Suitable for Use In: Panelboards, switchboards, MCCs, and main service disconnects
• Enclosure Type: Open / panel-mounted (enclosure sold separately)
• Condition: Brand New, Unused

The Eaton PDG33P0250TFAN circuit breaker combines high interrupting capacity, compact size, and thermal-magnetic protection, making it a trusted solution for demanding applications requiring safety, reliability, and performance.
