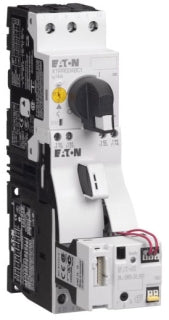

Eaton XTPR1P6BC1 / PKZM0-1.6 | Manual Motor Protector

Eaton XTPR1P6BC1 / PKZM0-1.6 | Manual Motor Protector | 1.0–1.6A | MSAA072735 | New

The Eaton XTPR1P6BC1 (also known as PKZM0-1.6, catalog reference MSAA072735) is a compact and robust manual motor protector (MMP) designed to provide reliable protection for motors and equipment operating in the 1.0 to 1.6 Amp range. As part of Eaton’s well-known PKZ and XTPR series, this unit offers integrated short-circuit and overload protection in a space-saving design ideal for motor control panels, HVAC units, conveyors, pumps, and general industrial machinery.

This 3-pole manual motor protector functions as a combination circuit breaker and motor starter, eliminating the need for separate fuses or overload relays. It ensures fast disconnection of motors under fault conditions and offers trip-free mechanism operation, maintaining safety compliance and system uptime.

The XTPR1P6BC1 is designed for manual ON/OFF switching, features a rotary knob actuator, and includes clear status indicators for ease of use and maintenance. The unit supports modular add-ons such as auxiliary contacts, undervoltage releases, and shunt trips, making it suitable for a variety of industrial control applications.

🔧 Key Features & Specifications:

• Manufacturer: Eaton
• Model Numbers: XTPR1P6BC1 / PKZM0-1.6
• Catalog Reference: MSAA072735
• Current Rating: Adjustable 1.0 – 1.6 Amps
• Poles: 3-Pole protection
• Voltage Rating: Up to 690V AC
• Interrupt Rating: 100 kA at 400V (with backup fuse)
• Trip Class: Class 10 overload protection
• Function: Manual motor protection (Overload + Short-Circuit)
• Switching Mechanism: Rotary handle (front-mounted, black knob)
• Mounting Style: DIN rail or screw mounting
• Standards Compliance: IEC/EN 60947-4-1, UL 60947-4-1, CSA, CE marked
• Modular Expansion: Supports auxiliary contacts, shunt trip, and undervoltage release modules
• Dimensions: Compact footprint for space-saving panel integration
• Operating Temperature: -25°C to +60°C
• Condition: Brand New, Unused
• Typical Applications: Motor starters, conveyor systems, fans, pumps, HVAC units, machine tools

The Eaton XTPR1P6BC1 manual motor protector delivers precise protection, compact design, and versatile integration options—making it an excellent solution for OEMs, panel builders, and system integrators seeking safe, reliable motor protection within a low-current range.
